ORTHOPEDIC PINS

K-Wires, Steinmann Pins, and Trocars

MCS product quality and grinding expertise means better surgical outcomes. Our ultra-sharp hollow point process minimizes insertion force and harder cutting edges equate to lower heat and minimal cell necrosis. Finally, our super smooth finishes ensure easy removal post-surgery.

  • K-Wires – small (.7mm to 1.8mm dia)
  • Steinmann Pins – medium (1.8mm to 4.0mm dia)
  • Trocars — large (4mm to 8mm dia)
Orthopedic Pins

Specialty —

  • Olive
  • Knowles
  • Overmold/notched
  • Threaded
  • Echo-genic
  • Biopsy Needles
Ortho Pin

Orthopedic Guide Wire –

  • Extended length K-Wires (Stainless steel or Nitinol)
  • Used for guiding cannulated tools & implants

Your ONE Integrated Source for Ortho Pins

  • In-Line Capabilities Optimized for K-Wire Production
  • Precision Marking
  • Flexible Point Geometry
  • Immediate Access to Most K-Wire Materials
  • CNC Mass Production with Tight Tolerances Through Overall length

Here are some of the East Coast locations where we supply Orthopedic Pins

Connecticut

• Hartford, CT

• Stamford, CT

Maryland

• Bowie, MD

• Gaithersburg, MD

Rhode Island

• Cranston, RI
• Warwick, RI

Delaware

• Dover, DE

• Newark, DE

Massachusetts

• Brockton, MA
• Boston, MA

South Carolina

• Charleston, SC
• Mount Pleasant, SC

District of Columbia

• Washington, DC

New Hampshire

• Concord, NH

• Manchester, NH

Tennessee

• Memphis, TN

• Nashville-Davidson, TN

New Jersey

• Elizabeth, NJ

• Paterson, NJ

Vermont

• Burlington, VT

• Essex, VT

Georgia

• Macon, GA

• Warner Robins, GA

New York

• Buffalo, NY

• Yonkers, NY

Virginia

• Chesapeake, VA

• Richmond, VA

Kentucky

• Louisville, KY

• Owensboro, KY

North Carolina

• Greensboro, NC
• Raleigh, NC

West Virginia

• Morgantown, WV
• Parkersburg, WV

Maine

• Auburn, ME
• South Portland, ME

Pennsylvania

• Pittsburgh, PA

• Reading, PA

Here are some of the West Coast locations where we supply Orthopedic Pins

Alaska

• Anchorage, AK

• Fairbanks, AK

Idaho

• Boise, ID

• Nampa, ID

Texas

• Austin, TX

• Houston, TX

Arizona

• Chandler, AZ

• Mesa, AZ

Montana

• Billings, MT
• Missoula, MT

Utah

• Provo, UT

• West Valley City, UT

Nevada

• North Las Vegas, NV

• Spring Valley, NV

Washington

• Spokane, WA
• Tacoma, WA

Hawaii

• Hilo Big Island, HI

• Kailua-Kona, HI

Oregon

• Hillsboro, OR
• Salem, OR

Here are some of the Central US locations where we supply Orthopedic Pins

Alabama

• Huntsville, AL

• Mobile, AL

Louisiana

• Baton Rouge, LA

• Kenner, LA

North Dakota

• Bismarck, ND
• Fargo, ND

Arkansas

• Fort Smith, AR

• Little Rock, AR

Michigan

• Detroit, MI

• Warren City, MI

Ohio

• Cincinnati, OH
• Cleveland, OH

Colorado

• Colorado Springs, CO

• Denver, CO

Minnesota

• Minneapolis, MN

• Rochester, MN

Oklahoma

• Edmond, OK
• Norman, OK

Illinois

• Chicago, IL

• Joliet, IL


Mississippi

• Hattiesburg, MS
• Jackson, MS

South Dakota

• Rapid City, SD

• Yankton, SD

Indiana

• Evansville, IN

• Warsaw, IN

Missouri

• Columbia, MO
• Kansas City, MO

Wisconsin

• Madison, WI

• Milwaukee, WI

Iowa

• Cedar Falls, IA

• Waterloo, IA

Nebraska

• Lincoln, NE

• Omaha, NE

Wyoming

• Casper, WY

• Cheyenne, WY
• Gillette, WY

Kansas

• Overland Park, KS

• Wichita, KS

New Mexico

• Las Cruces, NM

• Rio Rancho, NM

Request a Consultation

We will work closely with you to manufacture a customized medical instrument solution to meet your specific requirements. Contact us today!

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
MM slash DD slash YYYY
Do you have print or engineering drawings
Drop files here or
Accepted file types: jpg, gif, png, pdf, Max. file size: 256 MB.

    NITINOL FOR ORTHOPEDIC GUIDE WIRES

    For the ultimate precision and flexibility, use non-kinking Nitinol to guide your cannulated instrument kit into the body.

    Orthopedic Pin Manufacturing
    Nitinol — flexible for easy instrument guidance
    Orthopedic Pin Manufacturing
    Stainless Steel 316- rigid and may kink
    Example of a kink on a Stainless Steel 316 guide wire

    MCS Capabilities

    • Standard & Custom Point Geometries
    • Smoothness
    • Lengths — .5 – 96”
    • Diameters from .016-.326
    • Threading to the tiniest <.028
    • Passivation & Electro Polishing
    • Variety of materials — Nitinol, Titanium, Cobalt-chrome, Stainless Steel – 17-4, 17-7, 304, 316LVM
    • Heat treatment on a variety of material
    • Electrochemical markup, laser marking

    Threading

    • Full Thread
    • Partial Thread

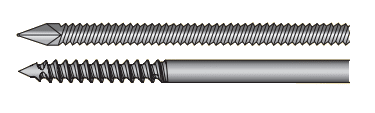

    Threading Examples | Full and Partial Thread

    Points

    • Diamond
    • 3 Facet (Trocar)
    • Blunt
    • 4 Facet — Specialty/Custom
    • Single/ Double Ended

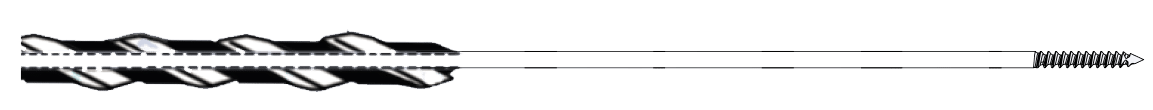

    Ortho Pins Diagram

    Marking

    • Color coding
    • Laser marked logo & ID
    • Distance markers

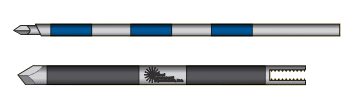

    Marking Examples

    Materials

    • 316LVM, F138 — high tensile, best corrosion resistance
    • 17-4, 17-7 and 455ss — good corrosion resistance, higher temper
    • Nitinol — non-kinking, great for guidewire and cannulated systems
    • Cobalt Chrome — ultra pure
    • Titanium — non-magnetic, MRI friendly

    A Legacy of Excellence

    Medical Component Specialists, Inc. was established in 2002, continuing the legacy of over 60 years of family grinding craftsmanship. Founder Jim Moore, a third generation craftsman, incorporates traditional craftsmanship, passed on through generations, with 21st century technology and a lean manufacturing style. MCS has quickly become a preferred supplier of precision medical components from wire, rod and tubing to Medical OEM’s throughout the US. New England-based MCS has a network of sales professionals located around the country to build personal relationships and provide exceptional customer service

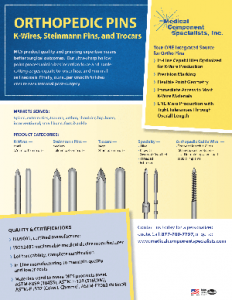

    Orthopedic Pins- K Wires, Stenmann Pins, Trocars Datasheet Download the Orthopedic Pins Datasheet as PDF

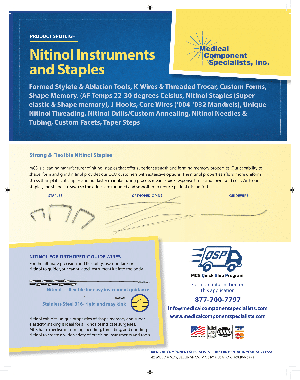

    Nitinol Instruments and Staples Datasheet Download the Nitinol Datasheet as PDF
